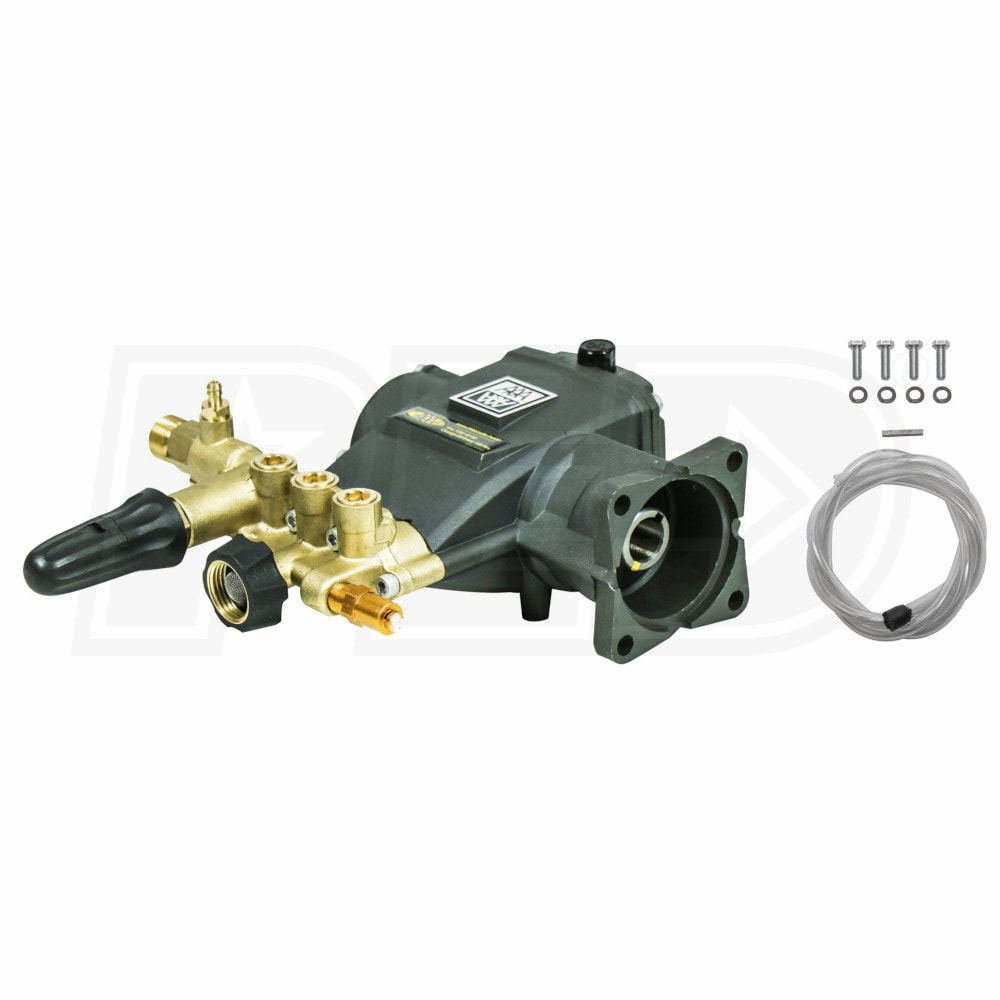

AAA DW2536 Fully Plumbed 3700 PSI 2.5 GPM (3/4" Shaft) Triplex Pressure Washer Pump Kit w/ PowerBoost (Pump Model 7117086)

Model:

90037

Write A Review
$263.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

AAA DW2536 Fully Plumbed 3700 PSI 2.5 GPM (3/4
AAA DW2536 Fully Plumbed 3700 PSI 2.5 GPM (3/4" Shaft) Triplex Pressure Washer Pump Kit w/ PowerBoost (Pump Model 7117086)
Model: 90037
$263.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Prosumer

Style

Gas

Inflow

Garden Hose (Female)

Outflow

22m Threaded (Male)

    Actual pump model number is 7117086 (DW2536). Model number 90037 is for the complete pump kit that includes the pump, soap hose and filter, mounting bolts and new key.
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
  • Fits many brands and models up to 3700 PSI and 2.5 GPM
  • Save money by replacing the pump instead of buying a new power washer
  • PowerBoost Technology
  • Delivers higher pressure at the nozzle for a more efficient cleaning
  • Adjustable unloader knob lets you choose pressure at your convenience

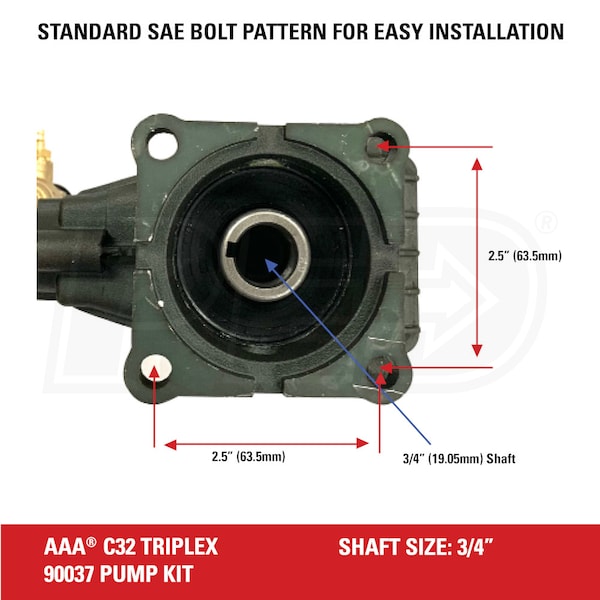

  • 3/4" Shaft & SAE Gas Engine Flange
  • Designed for gas-powered pressure washers with horizontal engines

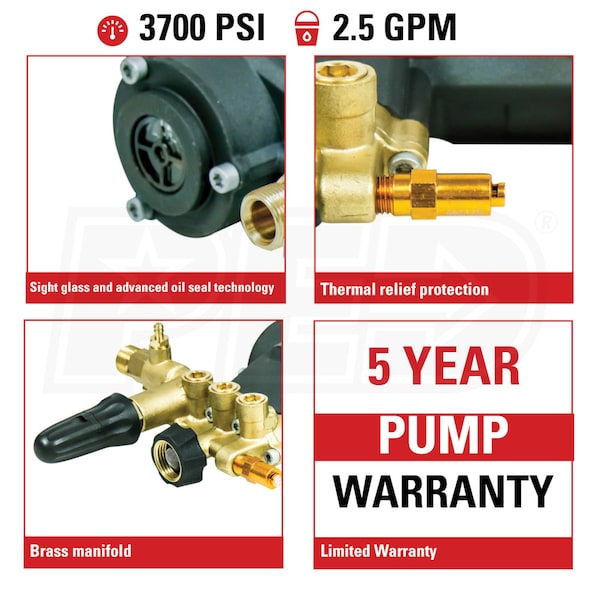

  • Brass Pump Head w/ Polished Ceramic-Coated Pistons
  • Sturdy forged brass manifold resists corrosion
  • Runs cooler, lasts longer; thermal relief protects the pump

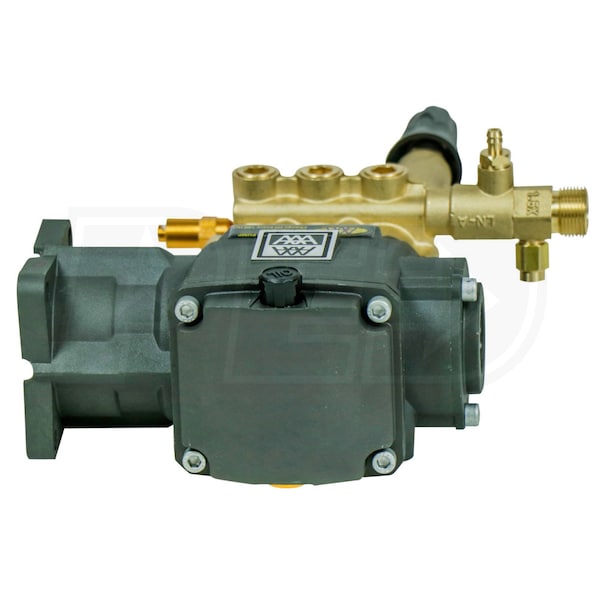

  • Fully Anodized Black Die-Cast Aluminum Crankcase
  • Pre-sealed and pre-filled with oil in the pump for easy maintenance
  • Oil sight glass & oil seal technology eliminates the need for a dipstick
  • Dual Oversize Radial Ball Bearings & Polished Steel Pistons
  • Better wear and friction resistance extends seal life
  • Stainless steel integrated unloader featuring easy-start system
  • Threaded M22 Pump Outlet & 3/4" Garden Hose Inlet
  • Check your pressure washer's inlet and outlet orientation to ensure compatibility
  • Comes with both the QC and for an adapter to M22 for the high pressure/outlet connections
  • Complete Kit With 5 Year Consumer-Use Factory Warranty
  • Includes detergent siphon tube for soap application

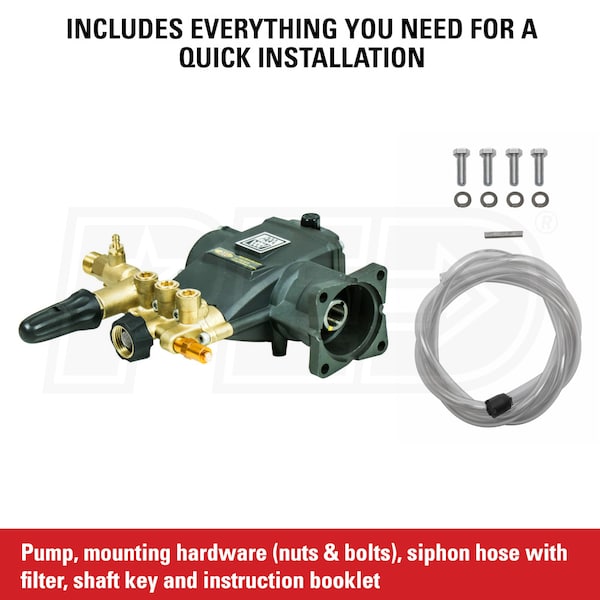

  • New mounting bolts, 3/16" shaft key for a tight connection & instruction manual
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

90037
specs product image PID-93960
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
9 Pounds
Consumer Warranty
5 Years
Product Length
12 Inches
Product Width
9 Inches
Product Height
4 Inches
Power Type
Gas
UPC
879399002076
Accessories
Pump Brand
AAA
Pump Type
Triplex Plunger
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Prosumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.5
Rated PSI
3700 PSI
Chemical Injections
Siphon Tube
