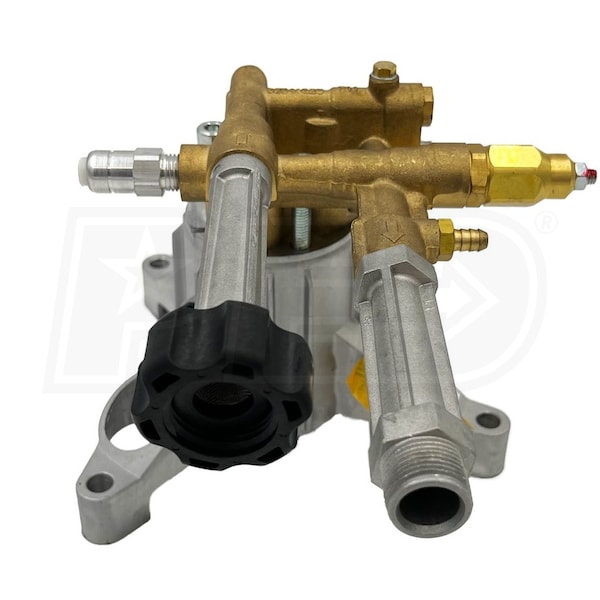

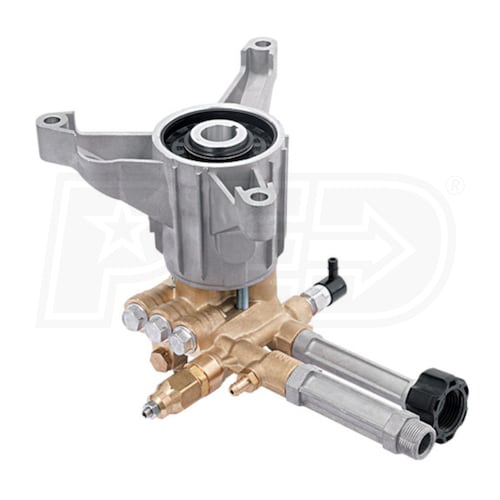

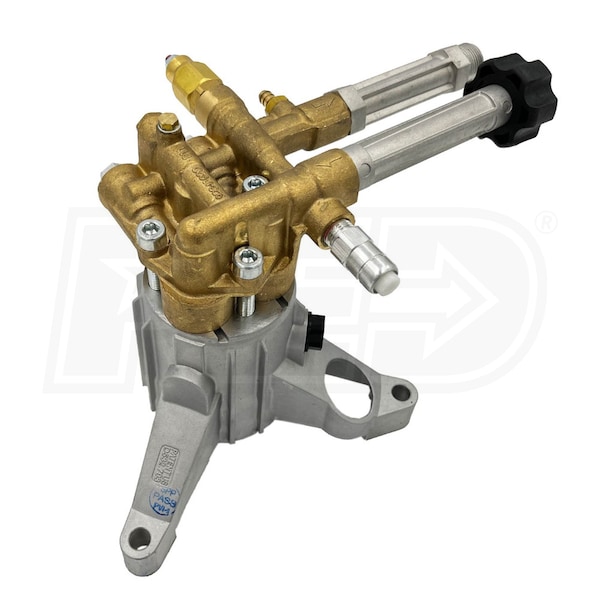

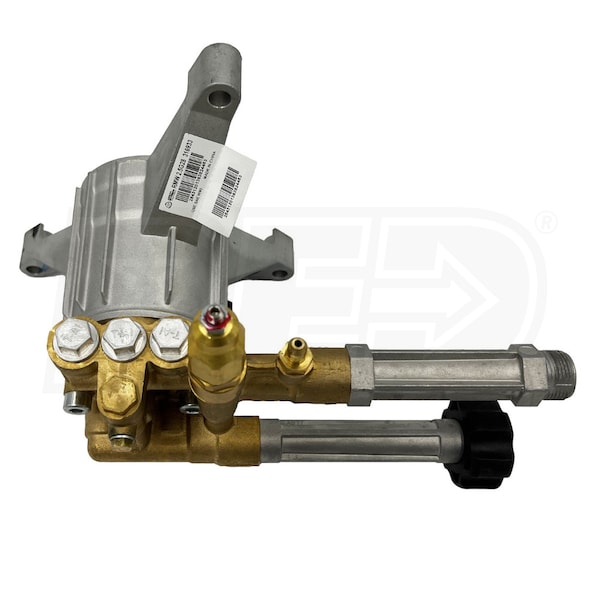

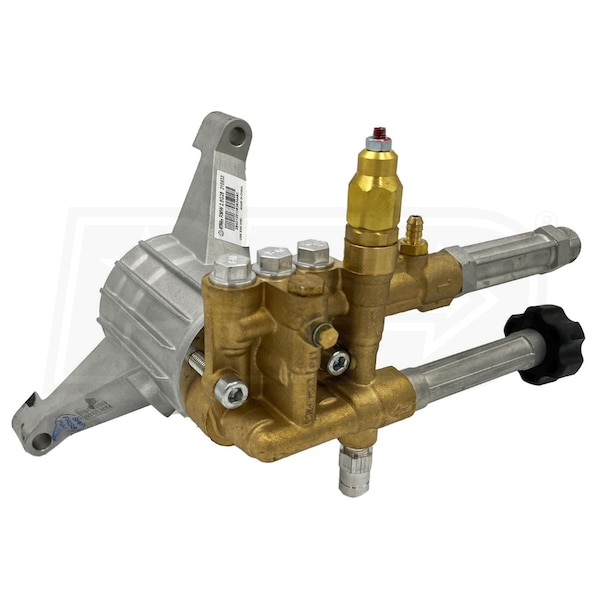

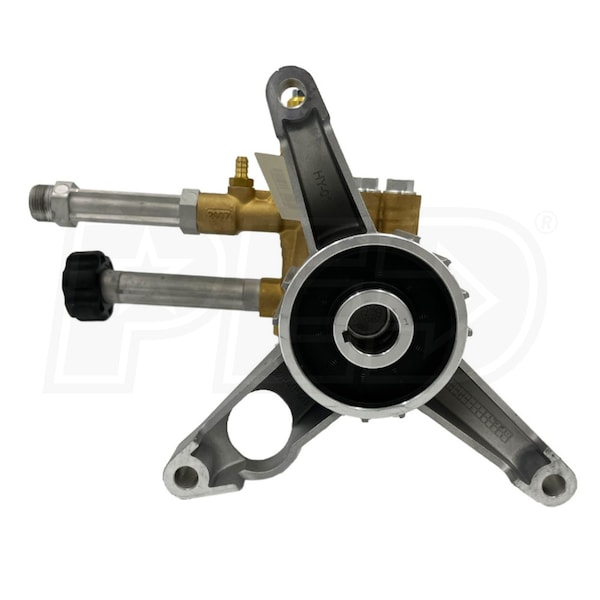

AR RMW 2800 PSI 2.5 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump (SX Style)
Model:
RMW25G28-EZ-SX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
- High-Quality Replacement For Worn Out Pumps
- Fits many homeowner-type pressure washers (not Karcher)
- Pressed brass pump head, die-cast aluminum alloy pump body
- Vertical Axial Cam Pump With Unloader
- Built-in thermal relief valve & easy start valve (EZ); Max 140°F
- Built-in pressure control valve, thermal relief valve & easy start valve (EZ); Max 140°F
- Standard Matching Gasoline Mounting Flange
- Convenient connection to 7/8" gas engine flange
- 7/8" hollow shaft spins at 3400 rpm
- Bore diameter 12mm; Stroke 9.7 mm
- Power EBHP 4.8; Crankshaft ID Stamp 1
- Powerful And Versatile
- Will push 2.5 GPM @ 2800 PSI ideal for 4 to 7 HP engines
- Water inlet 3/4" Female garden hose; outlet: 22MM Male thread
- Installation Details: (see installation drawings)
- 7" Overall height; 5.5" from top to center of output connection
- 6" from top to center of input connection; 2" from center of input to center of output connection
- Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
- There is a 25% restocking fee on returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RMW25G28-EZ-SX
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
7.7 Pounds
Consumer Warranty
1 Year
Product Length
12 Inches
Product Width
7 Inches
Product Height
7 Inches
Power Type
Gas
UPC
192216744639
Accessories
Pump Brand
AR
Pump Type
Axial Cam
Shaft Size
7/8
Pump Design
Vertical
Adjustable Pressure
No
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
Maximum GPM
Maximum GPM
Gallon per Minute
2.5
Rated PSI
2800 PSI
Chemical Injections
Sold Separately
