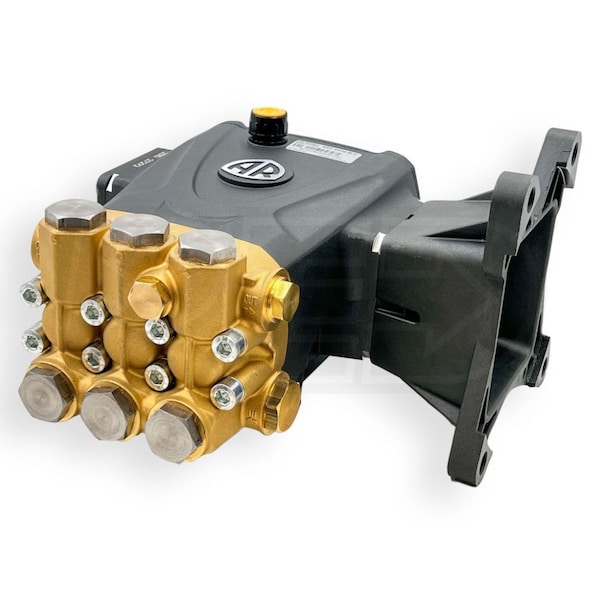

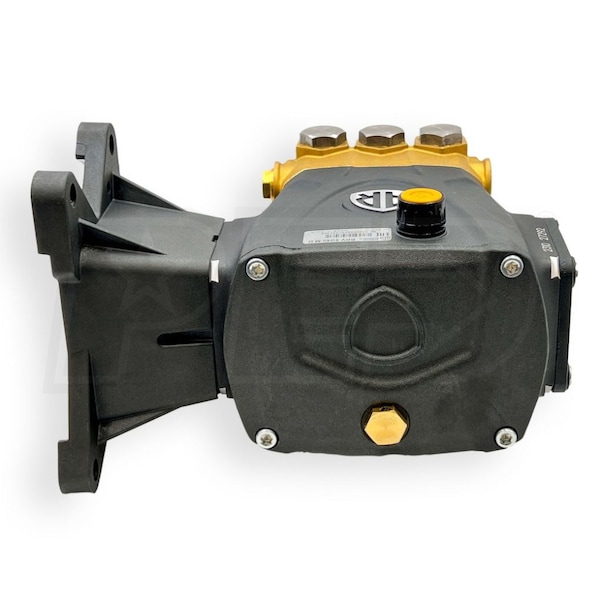

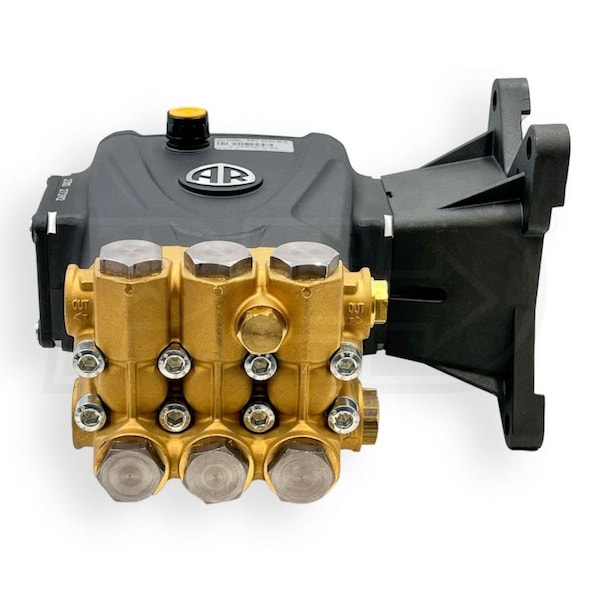

AR Fully Plumbed RRV 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump

Model:

RRV4G40-VRT-PKG

Write A Review
$399.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 12, 2024
Shipping to60601

AR Fully Plumbed RRV 4000 PSI 4 GPM (1
AR Fully Plumbed RRV 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump
Model: RRV4G40-VRT-PKG
$399.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

3/8" Threaded (Male)

Outflow

Garden Hose (Female)

  • High Quality Replacement For Worn Out Pumps
  • Professional quality at an affordable price
  • Fully Plumbed are ready to go - 4 bolts off - 4 bolts on
  • Save money by replacing the pump instead of buying a new power washer

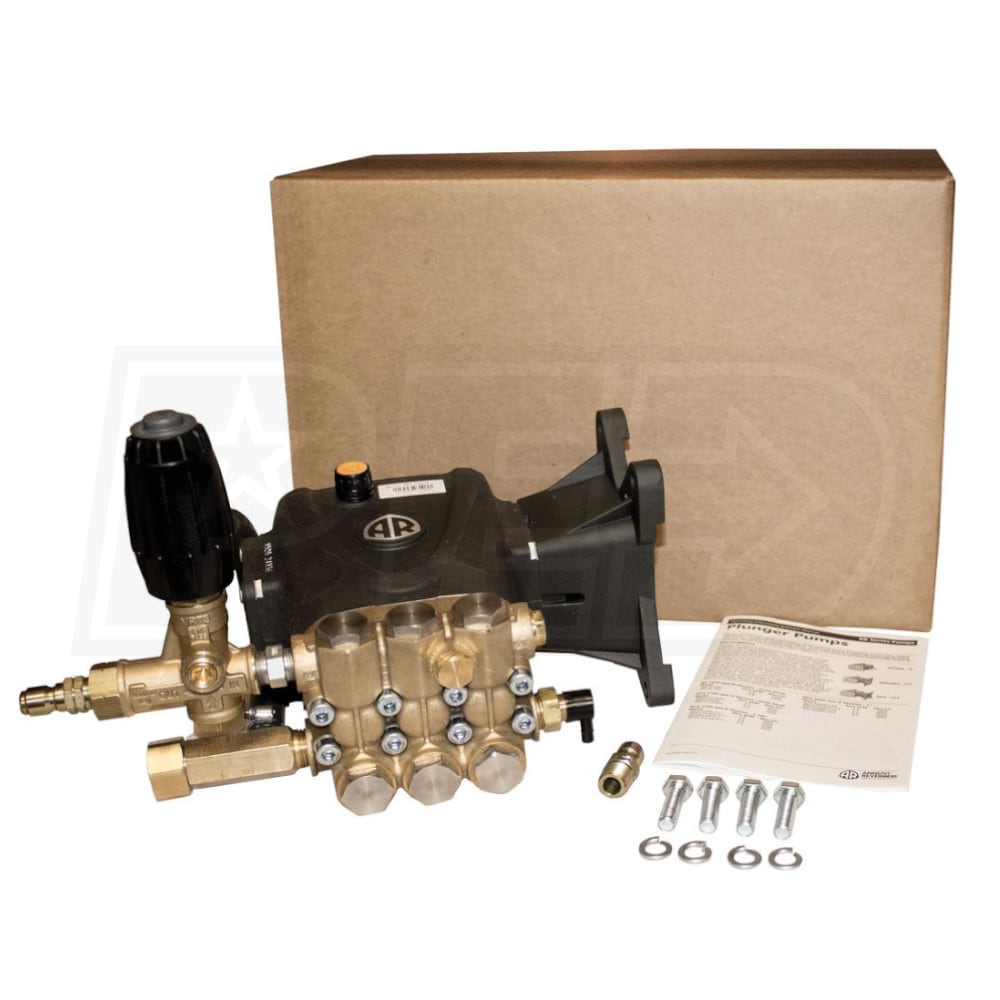

  • AR Brand Pump Kit Is Ready To Install

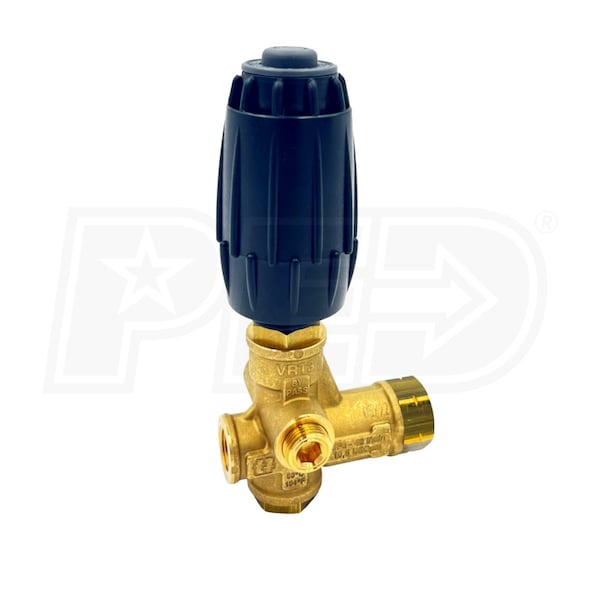

  • Includes EZ unloader (VRT3-310EZ) and thermal relief valve (TPP140)
  • 3/8" M quick connect (AL-PLUG3/8MB), garden hose inlet & 3ft. of bypass hose
  • Triplex Plunger Pump
  • Strong, long lasting and corrosion resistant
  • Brass pump head suitable for a wide range of conditions
  • Constructed with frictionless brass connecting rods and ceramic pistons
  • Extra-Thick Ceramic Plungers
  • Double gasket sealing system and lip oil seals
  • Suction and delivery valves with larger water passages.
  • Standard SAE Gas Engine Flange
  • SAE standard bolt pattern fits most gas-powered pressure washers
  • Designed for gas-powered pressure washers with horizontal engines

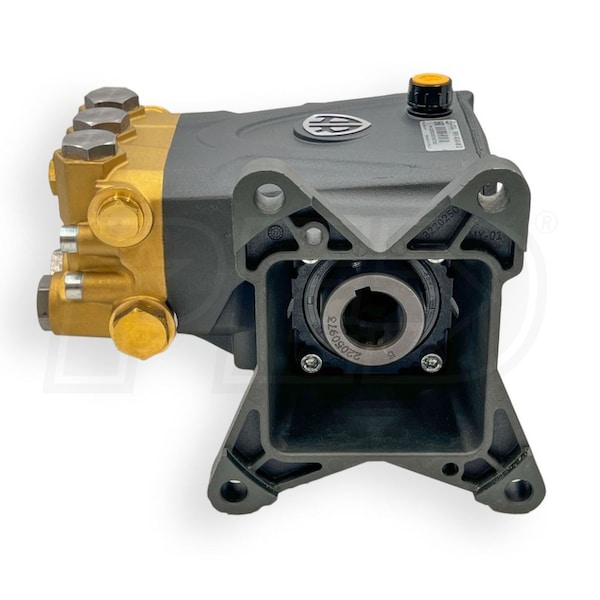

  • 1” Hollow Shaft Handles 3400 RPM
  • Power EBHP 11
  • Max Temperature 140° F
  • Plunger bore 15mm, plunger stroke 8.2mm

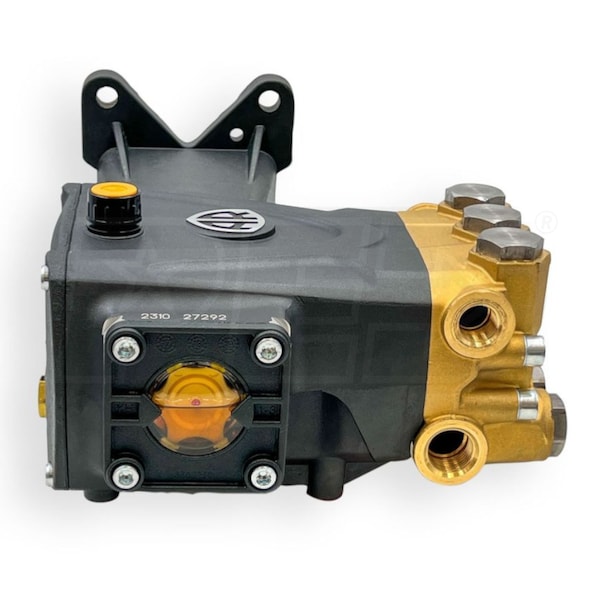

  • Oil capacity 13.35 ounces; Large oil site glass
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RRV4G40-VRT-PKG
specs product image PID-153620
Overview
Product Category
Pressure Washer Pumps
Weight
18 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.92 Inches
Product Width
9.48 Inches
Product Height
5.98 Inches
Power Type
Gas
UPC
192216849365
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Inflow
3/8" Threaded (Male)
Outflow
Garden Hose (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Temperature Rating
140
Chemical Injections
Not Included
