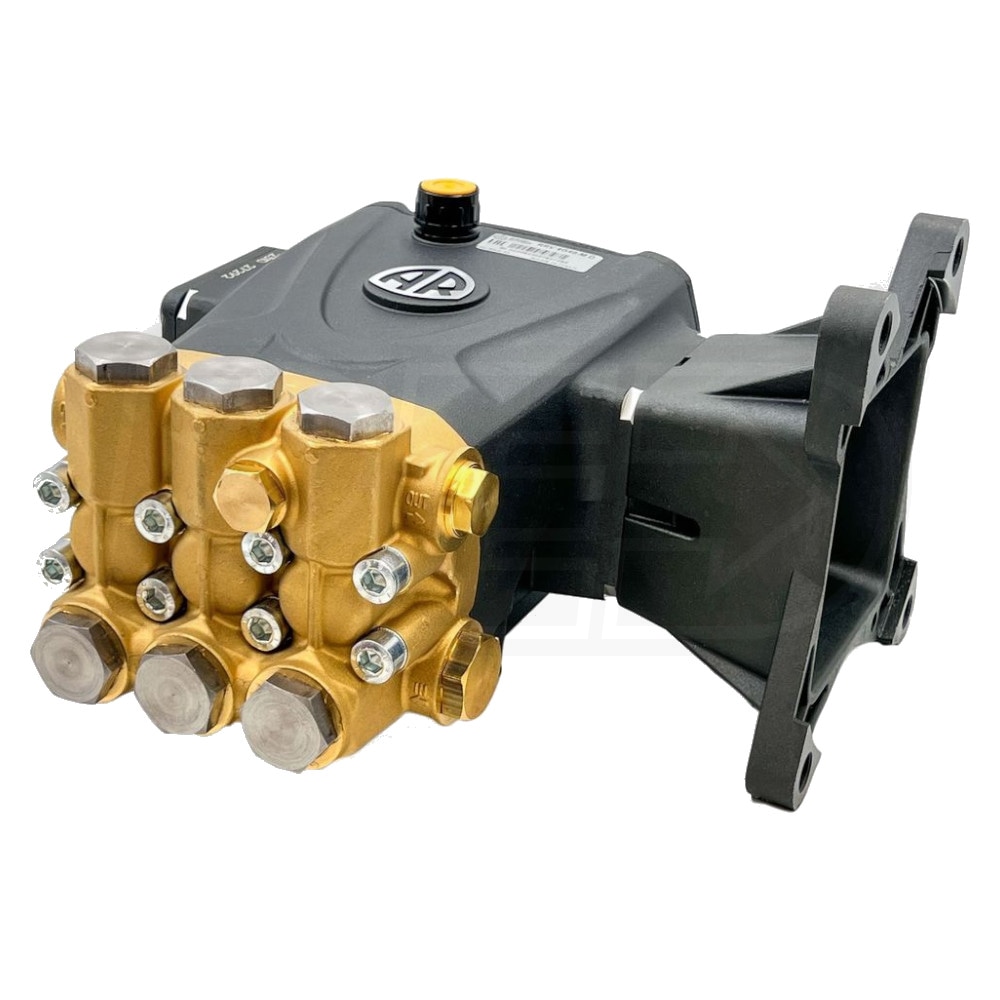

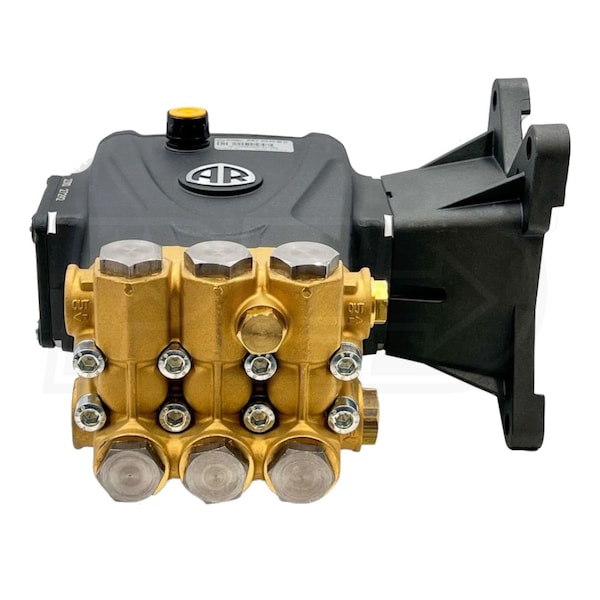

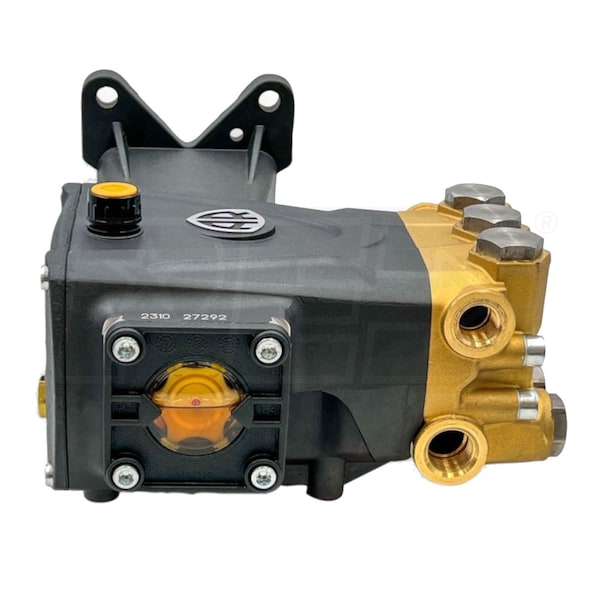

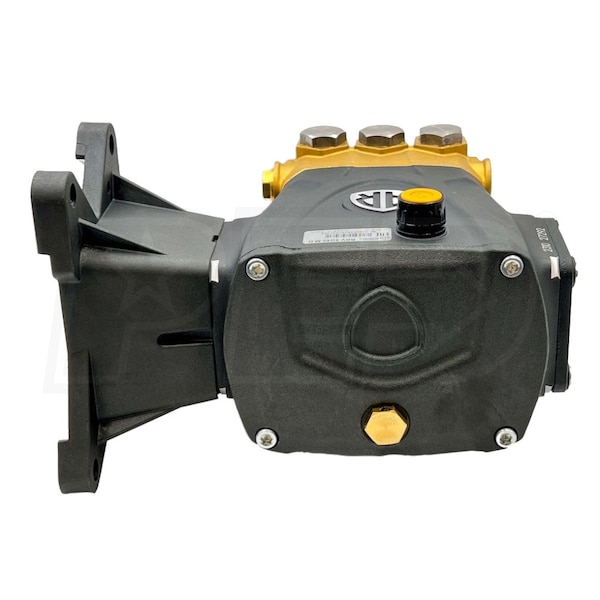

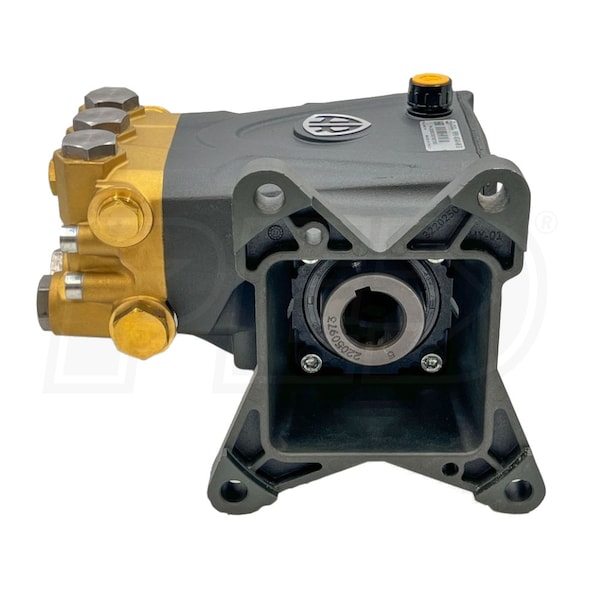

AR RRV 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump

Model:

RRV4G40HD-F24

Write A Review
$324.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

AR RRV 4000 PSI 4 GPM (1
AR RRV 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump
Model: RRV4G40HD-F24
$324.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • High Quality Replacement For Worn Out Pumps
  • Professional quality at an affordable price
  • Save money by replacing the pump instead of buying a new power washer
  • Triplex Plunger Pump
  • Strong, long lasting and corrosion resistant
  • Brass pump head suitable for a wide range of conditions
  • Constructed with frictionless aluminum connecting rods and ceramic pistons
  • Extra-Thick Ceramic Plungers
  • Double gasket sealing system and lip oil seals
  • Suction and delivery valves with larger water passages.
  • Standard SAE Gas Engine Flange
  • SAE standard bolt pattern fits most gas-powered pressure washers
  • Designed for gas-powered pressure washers with horizontal engines
  • 1” Hollow Shaft Handles 3400 RPM
  • Power EBHP 11
  • Max Temperature 140° F
  • Plunger bore 15mm, plunger stroke 9.2mm
  • Oil capacity 13.35 ounces; Large oil site glass
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RRV4G40HD-F24
specs product image PID-153619
Overview
Product Category
Pressure Washer Pumps
Weight
18 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.92 Inches
Product Width
9.48 Inches
Product Height
5.98 Inches
Power Type
Gas
UPC
192216249363
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Temperature Rating
140
Chemical Injections
Not Included
