Features
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- ***Shaft Size Measurements Must Be Precise***
- Professional quality at an affordable price
- Save money by replacing the pump instead of buying a new power washer
- Triplex Plunger Pump w/ EZ Start Valve
- Brass pump head is strong, long lasting & corrosion resistant
- Ruggedly designed crankcase with deep fins for better cooling
- Constructed with frictionless aluminum connecting rods and ceramic pistons
- Extra-Thick Ceramic Plungers
- Double gasket sealing system and lip oil seals
- Suction and delivery valves with larger water passages.
- Standard SAE Gas Engine Flange
- SAE standard bolt pattern fits most gas-powered pressure washers
- Designed for gas-powered pressure washers with horizontal engines
- 1” Hollow Shaft Handles 3400 RPM
- Power EBHP 11
- Max Temperature 140° F
- Plunger bore 15mm, plunger stroke 9.4mm
- Oil capacity 16 ounces; Large oil site glass
- Includes built-in unloader and chemical injection system (Must Purchase Items Separately)
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- (Dimensions on the spec sheet download under the Specs tab)
- Pump ships bare so you'll need to re-use your connectors or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RSV4G40HDF40EZ
Overview
Product Category
Pressure Washer Pumps
Weight
7.5 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.69 Inches
Product Width
9.35 Inches
Product Height
6.55 Inches
Power Type
Gas
UPC
192216239944
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Temperature Rating
140
Chemical Injections
Not Included
Reviews
(1)
AR North America RSV4G40HDF40EZ Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Pressure Washer Expert
How-To Articles
How To Pick The Perfect Replacement Pressure Washer Pump
If your pressure washer turns on, but won't pressurize water, don't give up on ...
How to Replace the Pump on a Pressure Washer
Pressure washer pumps can be burned out in many ways. It's more common than you...
Manuals
RSV4G40HDF40EZ
Installation Video
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

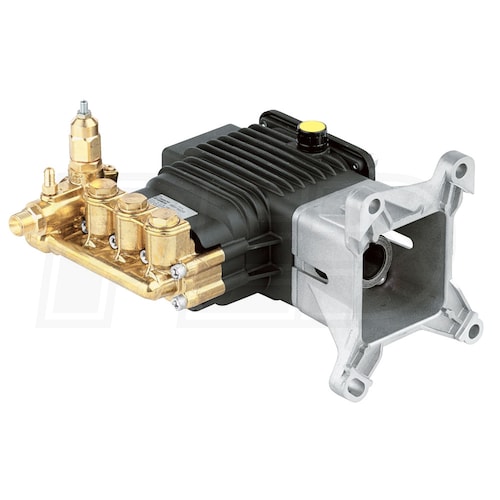

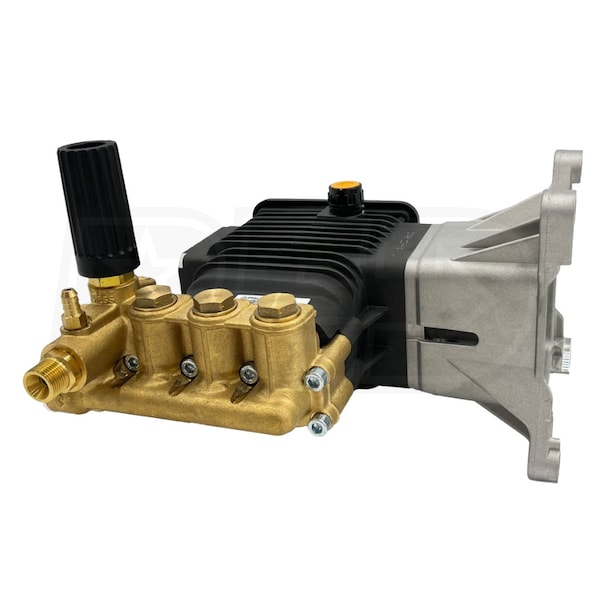

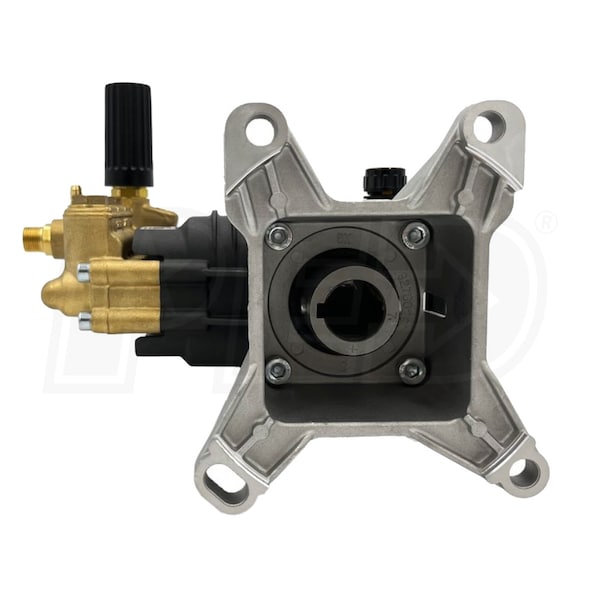

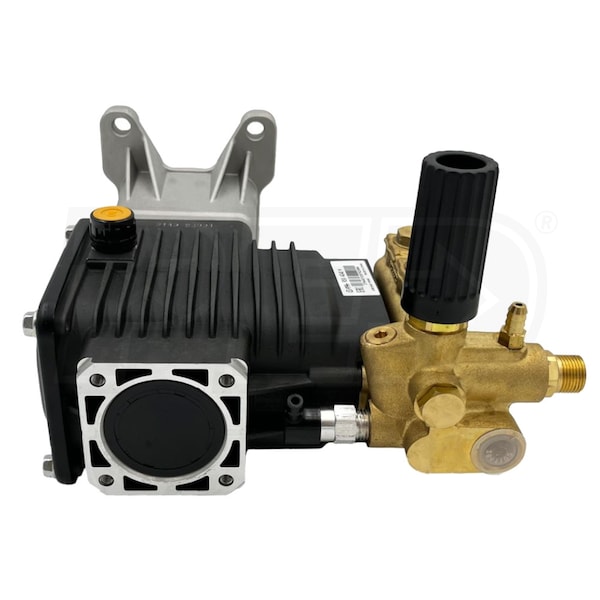

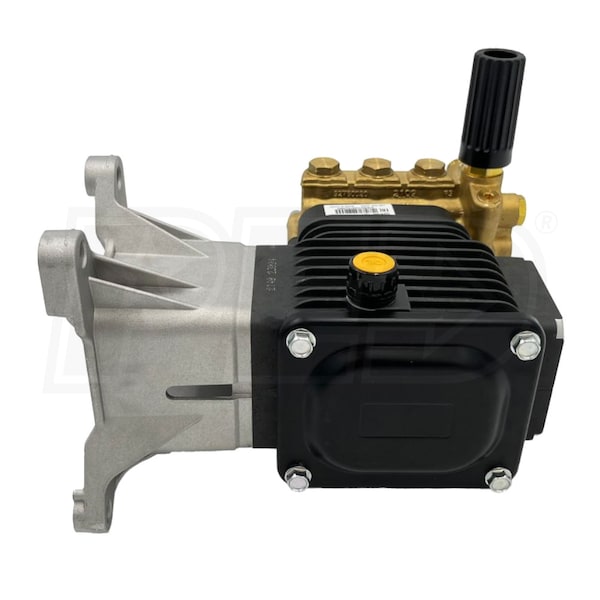

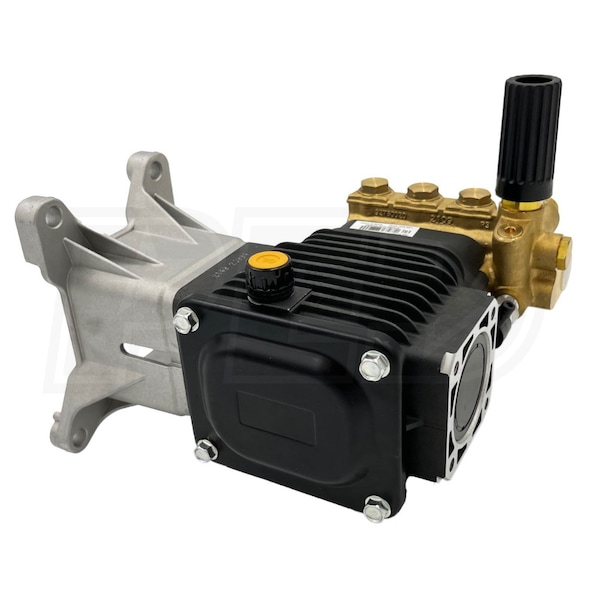

AR RSV 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump
