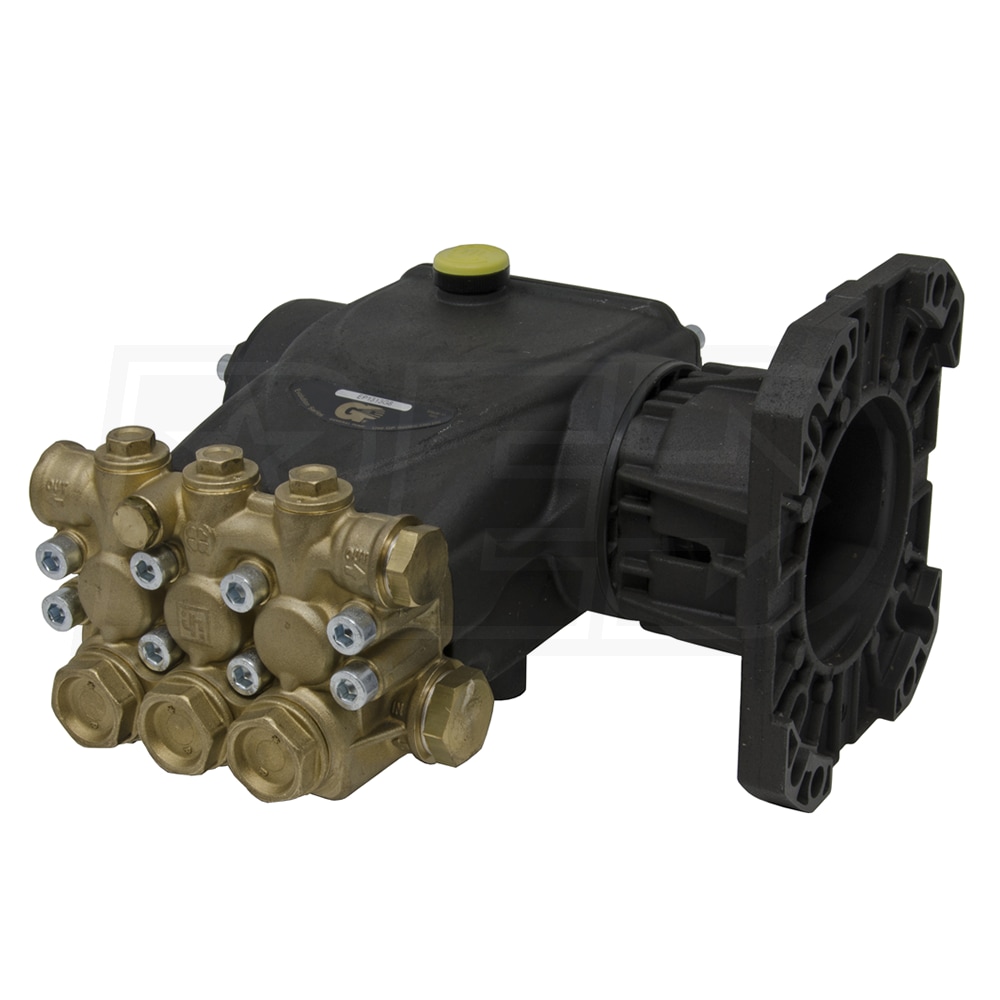

General Pump Evolution Series 4000 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump
Model:
EP1313G8
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- Quality Replacement For Worn Out Pumps
- New forged brass manifold increases working pressure to 4000 PSI
- New Pump Design
- Connecting rods reduce specific pressure & improve lubrication
- Solid Ceramic Plungers With Dual Guide System
- Ceramic runs cooler & lasts longer; can be rebuilt
- New plunger guide assembly reduces friction, extends seal life (patent pending)
- Durable Components
- Oversized forged crankshaft & crankshaft key increase performance
- Optimized outlet valves deliver better volumetric efficiency
- Large Diameter Sight Glass
- Easier oil checking; dipstick with breather for easier maintenance
- Large 15 oz. oil capacity means better cooling & lubrication
- SAE J609B Gas Engine Mounting Flange
- Maximum 4000 PSI, 4 gallons per minute, up to 165°F
- 3400 RPM; shaft diameter .945 inches (24 mm)
- Pump ships as shown; you will need to reuse your connectors or purchase them separately
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps

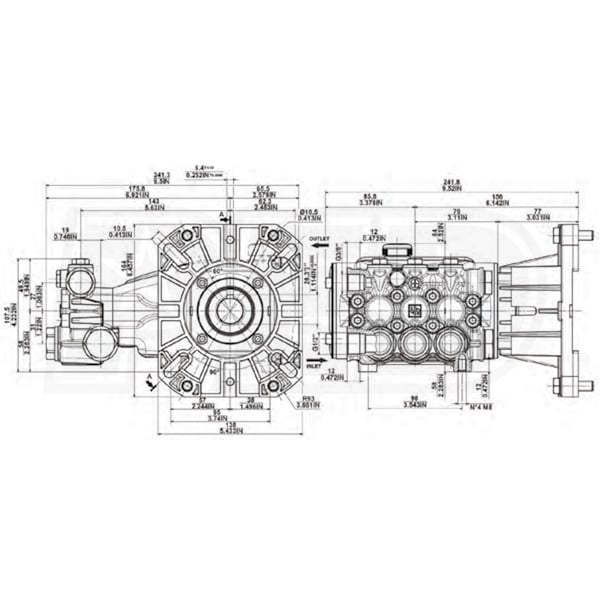

- See the Owner's Manual (under the Specs tab) for dimensions
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EP1313G8
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
15 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.5 Inches
Product Width
9.5 Inches
Product Height
6.45 Inches
UPC
682491066224
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
