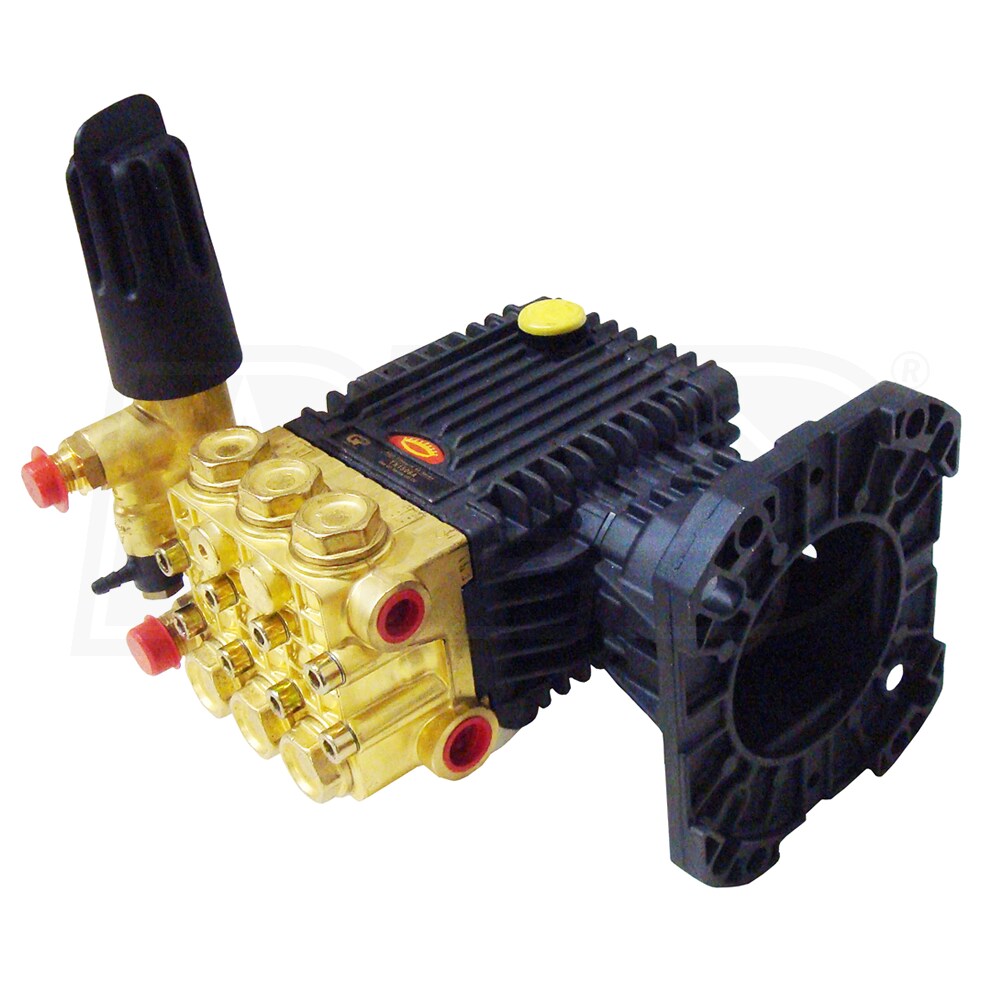

General Pump Series 63 3500 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump w/ Unloader & Injector

Model:

EP1313G8UIF

Write A Review
$447.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

General Pump Series 63 3500 PSI 4 GPM (1
General Pump Series 63 3500 PSI 4 GPM (1" Shaft) Triplex Pressure Washer Pump w/ Unloader & Injector
Model: EP1313G8UIF
$447.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Gas

Pump Brand

General

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Male)

  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Direct drive for convenience and durability
  • Triplex Plunger Pump With Solid White Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Next generation packings for exceptional seal life
  • Built In Pressure Trapping Unloader And Injector
  • Adjustable pressure is handy and versatile
  • Injector allows use of any pressure washer safe detergent
  • Oversized Connecting Rods
  • Can handle up to 3400 RPM
  • 1" Hollow Shaft And J609-b Motor Flange
  • Inlet port thread 1/2"*14 BSP*F
  • Discharge port thread 3/8"-19 BSP-F
  • Maximum fluid temperature 160 degrees F
  • Bore .591 in. / 15mm, stroke .394 in. / 10mm
  • 14 ounce oil capacity
  • Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP1313G8UIF
specs product image PID-3224
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
18.2 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
11.3 Inches
Product Width
9.5 Inches
Product Height
9.1 Inches
UPC
682491013358
Additional Model Numbers

TX1510G8UIA, EP1313G8UIF

Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
3500 PSI

Reviews

(20)
General Pump EP1313G8UIF Reviews & Ratings

Product Q&A

(5)
Expert avatar photo
Product Questions Answered by Jim, the Pressure Washer Expert
How does this pump secure to an engine shaft?
Shane
from Texas
September 27, 2023
will this work on my Honda gx390 ? the pump looks the same
Ricardo Ayala
from Michigan
July 06, 2016
Do this pump will fit to a honda gx 200 motor
Mario
from Arizona
June 01, 2014
Hi, I just wanted to make sure this pump would work on my honda gx270 with a 1" shaft?
Kurt
from
July 10, 2012
Making sure this is a bolt-on replacement for my Honda GX340 w/1" shaft.
Ray
from
May 18, 2012
