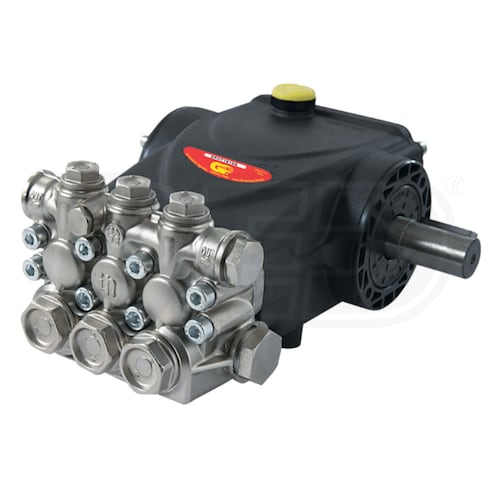

General Pump Emperor Series 2465 PSI 3.4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model:
EPHT1813S
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Ideal for use in carpet cleaning and other high pressure cleaning applications
- Triplex Plunger Pump w/ High Tech Packings
- Superior low-pressure and high pressure seal
- Solid ceramic plungers with dual guide system run cooler
- Specifically designed to handle rigorous duty cycles, high temperatures & chemicals
- Durable Components
- Optimized nickel-plated inlet/outlet valve plugs
- Nickel-plated forged brass manifold lasts longer than cheaper models
- 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
- Inlet port thread 1/2" -14 BSP-F
- Discharge port thread 3/8"-19 BSP-F
- Plunger bore .708 in / 18 mm, plunger stroke .472 in / 12 mm
- Crankcase oil capacity 14.0 ounces; Dual lip oil seal
- Rated PSI 125 and max temperature 185° F
- Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
- There is a 25% restocking fee on returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EPHT1813S
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
18 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.5 Inches
Product Width
8.38 Inches
Product Height
5.1 Inches
Power Type
Gas
UPC
682491043218
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
3.4
Rated PSI
2465 PSI
Chemical Injections
Sold Separately
