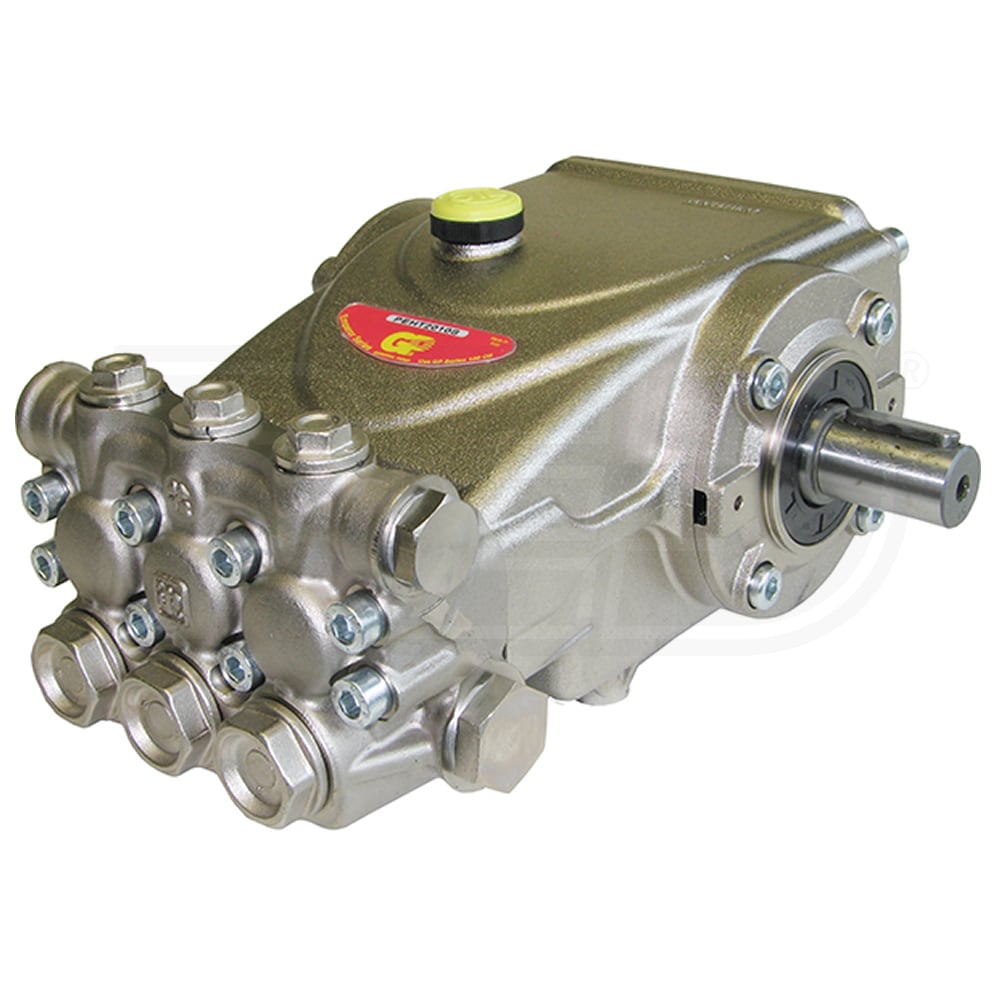

General Pump Platinum Emperor Series 3000 PSI 5.55 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model:
PEHT2213S
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Designed for use in applications where the water must be pre-heated, such as in carwash, food and pharmaceutical industries
- Triplex Plunger Pump w/ High Tech Packings
- Solid ceramic plungers run cooler
- Superior low-pressure & high pressure seal
- Specifically designed to handle rigorous duty cycles, high temperatures and chemicals
- Durable Components & Heavy Duty Tapered Roller Bearings
- Nickel-plated forged manifold lasts longer than cheaper models
- Patent-pending inlet/outlet valve cage
- 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
- Inlet port thread 1/2" - 14 BSP-F
- Discharge port thread 3/8" - 19 BSP-F
- Plunger bore .866 in / 22 mm, plunger stroke .512 in. / 13 mm
- Crankcase oil capacity 22 ounces
- Maximum fluid temperature 185 F; Max 125 PSI
- Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
- There is a 25% restocking fee on returned pumps
- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
PEHT2213S
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
21 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
10.4 Inches
Product Width
8.8 Inches
Product Height
5.4 Inches
Power Type
Gas
UPC
682491124979
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
5.55
Rated PSI
3000 PSI
Chemical Injections
Sold Separately
