Karcher KS3540G 4000 PSI 3.0 GPM Replacement Triplex Pressure Washer Pump
Model:
9.802-349.0
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- Karcher KS.2 Replacement Triplex Plunger Pump
- Designed for 4000 PSI discharge at 3.5 GPM & 3400 RPM
- Maximum inlet pressure: 125 PSI
- 15mm bore; 9mm stroke; 1" hollow shaft
- Die Cast, Anodized Aluminum Crankcase With Cooling Fins
- Large capacity oil bath prolongs pump life
- Unloader, Inlet & Outlet Fittings Not Included
- Forged brass manifold has an exclusive lifetime warranty
- Solid Ceramic Plungers
- Mirror finish & corrosion resistance for maximum performance
- Rugged Components
- Stainless steel inlet & discharge valves, long-life seals
- Oversized connecting rods & crankshaft for maximum life
- Heavy-duty dual raceway crankcase bearing
- High capacity flange needle bearing
- Dacromet-coated manifold bolts resist corrosion
- Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- Please refer to the Spec Sheet PDF under the Specs tab

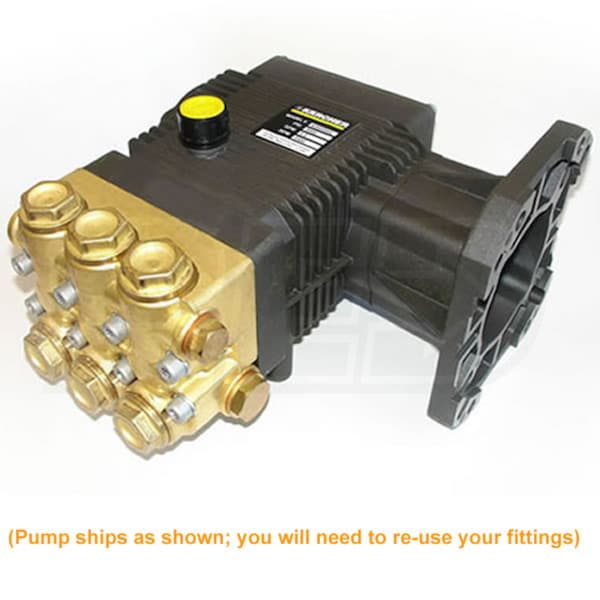

- Ships as shown; you will need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9.802-349.0
Overview
Weight
24.5 Pounds
Consumer Warranty
7 Years
Product Length
11 Inches
Product Width
10.2 Inches
Product Height
5.7 Inches
Accessories
Pump Brand
Karcher
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
3
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
